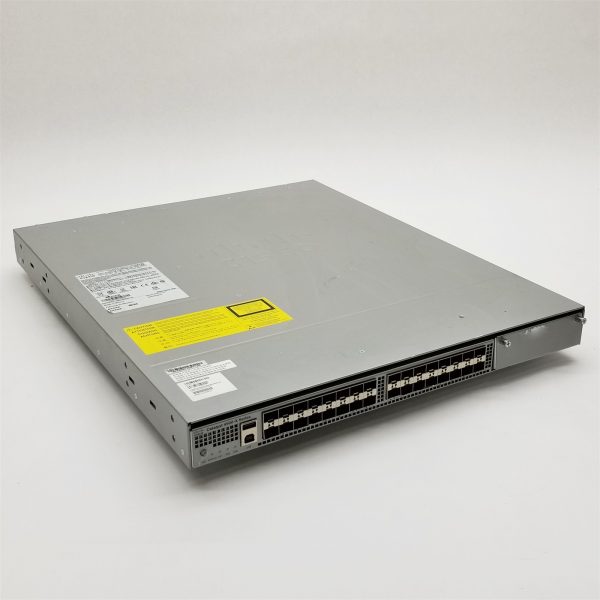

Cisco 4500-X WS-C4500X-32SFP+ V04 32-Port 10GE IP Base Managed Switch 2*750W AC

Rom Monitor (P) Version 15.0(1r)SG11
CPU Rev: 2.2, Board Rev: 9, Board Type: 107
CPLD Mobat Rev: 2.0x549a.0x59a4
Chassis: WS-C4500X-32

MAC Address : 84-b8-02-02-59-bf
Ip Address : Not set.
Netmask : Not set.
Gateway : Not set.
TftpServer : Not set.

Non-Redundant system or peer not running IOS
System Uplinks & Linecards have been reset!!

***** The system will autoboot in 5 seconds *****

Type control-C to prevent autobooting.
. . . . .

******** The system will autoboot now ********

config-register = 0x141

Autobooting using the first file from bootflash…..

*
*
Loading image !!!!!!!!!!!!!!!!!!!!!!!!

Checking digital signature….
[bootflash:/cat4500e-universalk9.SPA.03.07.00.E.152-3.E.bin] Digitally Signed Release Software with key version A

Rommon reg: 0x00084F80
Reset2Reg: 0x00004200
*

Image load status: 0x00000003
####
Radtrooper 064 controller 0x047F4140..0x0498FCDA Size:0x00661EDC
Program Done!
######################[ 0.058399] pci 0000:00:00.0: ignoring class b20 (doesn’t match header type 0
1)[ 0.148635] pci 0001:04:00.0: ignoring class b20 (doesn’t match header type 0
1)[ 0.242318] pci 0002:0c:00.0: ignoring class b20 (doesn’t match header type 0
1)
Starting System Services

devpts /dev/pts devpts rw,nosuid,noexec,relatime,gid=4,mode=600,ptmxmode=000 0 0

diagsk10-post version 5.1.4.1

prod: WS-C4500X-32 part: 73-14959-06 serial: JAE190802B5

Power-on-self-test for Module 1: WS-C4500X-32

CPU Subsystem Tests …
seeprom: Pass

Traffic: L3 Loopback …
Test Results: Pass

Traffic: L2 Loopback …
Test Results: Pass
post done(66 secs)
Exiting to ios…
Dec 30 11:13:53 %IOSXE-3-PLATFORM: process kernel: [ 95.646270] mpc85xx_pci_err_
probe: Unable to requiest irq 0 for MPC85xx PCI err
Dec 30 11:13:53 %IOSXE-3-PLATFORM: process kernel: [ 95.662894] mpc85xx_pcie_err
_probe: Unable to requiest irq 0 for MPC85xx PCIe err
Loading gsbu64atomic as gdb64atomic
Failed to bring interface “eth1” up
Using 1 for MTS slot
Platform Manager: acquire hwlock chassis()
Platform Manager: starting in standalone mode

Restricted Rights Legend

Use, duplication, or disclosure by the Government is
subject to restrictions as set forth in subparagraph
(c) of the Commercial Computer Software – Restricted
Rights clause at FAR sec. 52.227-19 and subparagraph
(c) (1) (ii) of the Rights in Technical Data and Computer
Software clause at DFARS sec. 252.227-7013.

cisco Systems, Inc.
170 West Tasman Drive
San Jose, California 95134-1706

Cisco IOS Software, IOS-XE Software, Catalyst 4500 L3 Switch Software (cat4500e
-UNIVERSALK9-M), Version 03.07.00.E RELEASE SOFTWARE (fc4)
Technical Support: cisco.com/techsupport
Copyright (c) 1986-2014 by Cisco Systems, Inc.
Compiled Sun 07-Dec-14 22:13 by prod_rel_team

Cisco IOS-XE software, Copyright (c) 2005-2014 by cisco Systems, Inc.
All rights reserved. Certain components of Cisco IOS-XE software are
licensed under the GNU General Public License (“GPL”) Version 2.0. The
software code licensed under GPL Version 2.0 is free software that comes
with ABSOLUTELY NO WARRANTY. You can redistribute and/or modify such
GPL code under the terms of GPL Version 2.0.
www.gnu.org/licenses/gpl-2.0.html) For more details, see the
documentation or “License Notice” file accompanying the IOS-XE software,
or the applicable URL provided on the flyer accompanying the IOS-XE
software.

This product contains cryptographic features and is subject to United
States and local country laws governing import, export, transfer and
use. Delivery of Cisco cryptographic products does not imply
third-party authority to import, export, distribute or use encryption.
Importers, exporters, distributors and users are responsible for
compliance with U.S. and local country laws. By using this product you
agree to comply with applicable laws and regulations. If you are unable
to comply with U.S. and local laws, return this product immediately.

A summary of U.S. laws governing Cisco cryptographic products may be found at:
cisco.com/wwl/export/crypto/tool/stqrg.html

If you require further assistance please contact us by sending email to
[email protected].

cisco WS-C4500X-32 (MPC8572) processor (revision 9) with 4194304K bytes of physi
cal memory.
Processor board ID JAE190802B5
MPC8572 CPU at 1.5GHz, Cisco Catalyst 4500X
Last reset from PowerUp
1 Virtual Ethernet interface
32 Ten Gigabit Ethernet interfaces
511K bytes of non-volatile configuration memory.

Press RETURN to get started!

*Dec 30 11:14:28.535: %BUFCAP-6-EPC_RF_INFRA: EPC rf infra registration is SUCCE
SS
*Dec 30 11:14:33.868: %C4K_IOSSYS-6-IMAGELEVEL: Supervisor booting in image leve
l ‘entservices’
*Dec 30 11:14:40.519: %C4K_IOSMODPORTMAN-4-POWERSUPPLYBAD: Power supply 2 has fa
iled or been turned off
*Dec 30 11:15:19.472: %SPANTREE-5-EXTENDED_SYSID: Extended SysId enabled for typ
e vlan
*Dec 30 11:15:21.402: %C4K_SUPERVISOR-4-HEARTBEATSKIP: Linecard watchdog heartbe
at skipped 3.379s
*Dec 30 11:15:21.421: %C4K_IOSMODPORTMAN-6-MODULEONLINE: Mod
Switch>
Switch>
Switch>
Switch>ule 1 (WS-C4500X-32 S/N: JAE190802B5 Hw: 2.0) is online
*Dec 30 11:15:23.089: %SYS-6-STARTUP_CONFIG_IGNORED: System startup configuratio
n is ignored based on the configuration register setting.System has been configu
red
