TESTING & COSMETIC NOTES:
This is a USED WORKING item in GOOD cosmetic condition that IS THOROUGHLY TESTED and is GUARANTEED WORKING
The unit has been reset to the factory default settings. See console log below.
COMPONENTS INCLUDED IN THIS AUCTION:

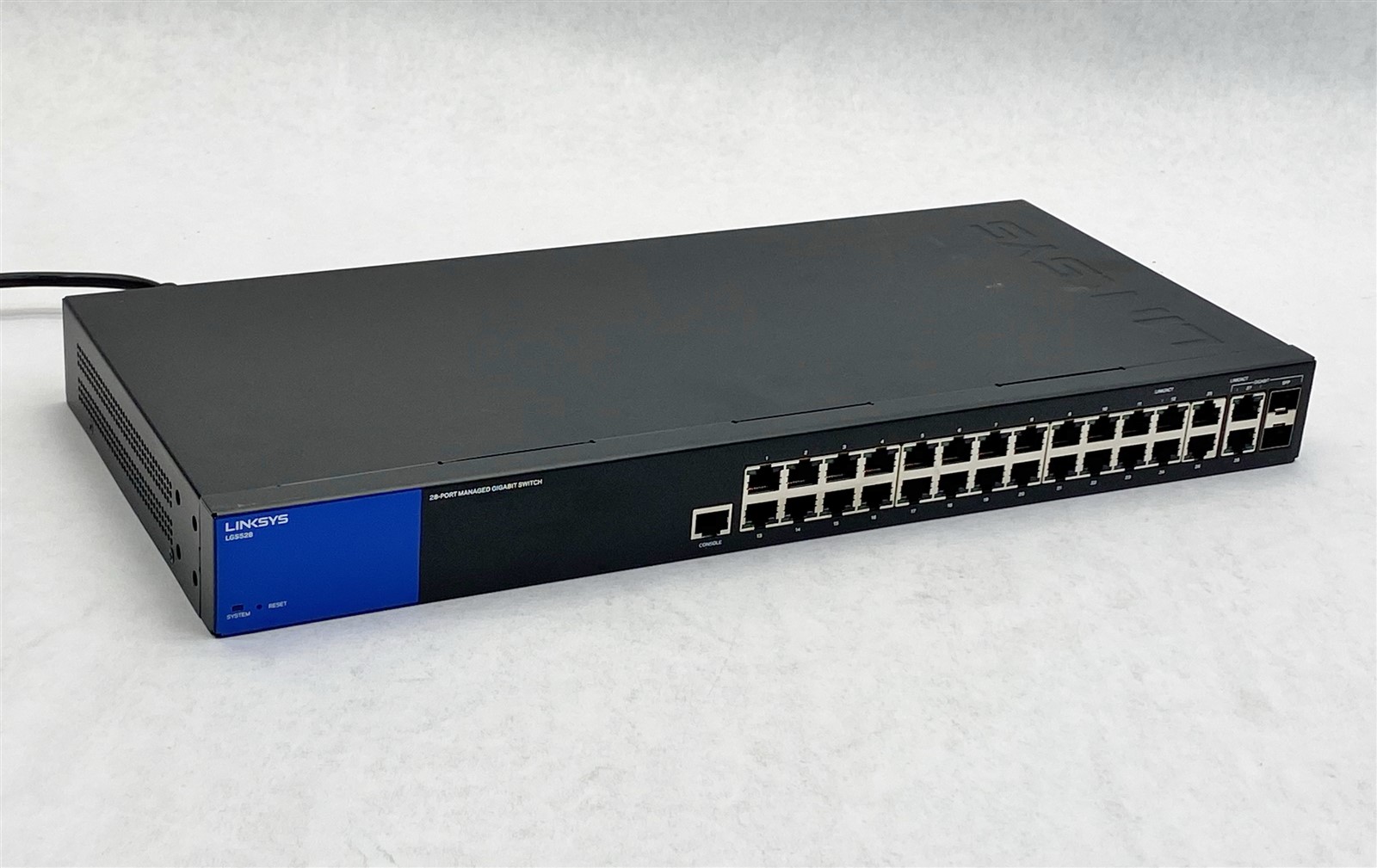

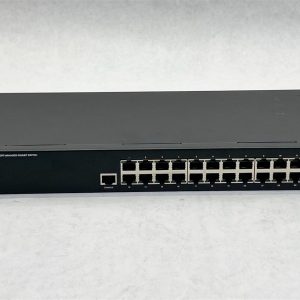

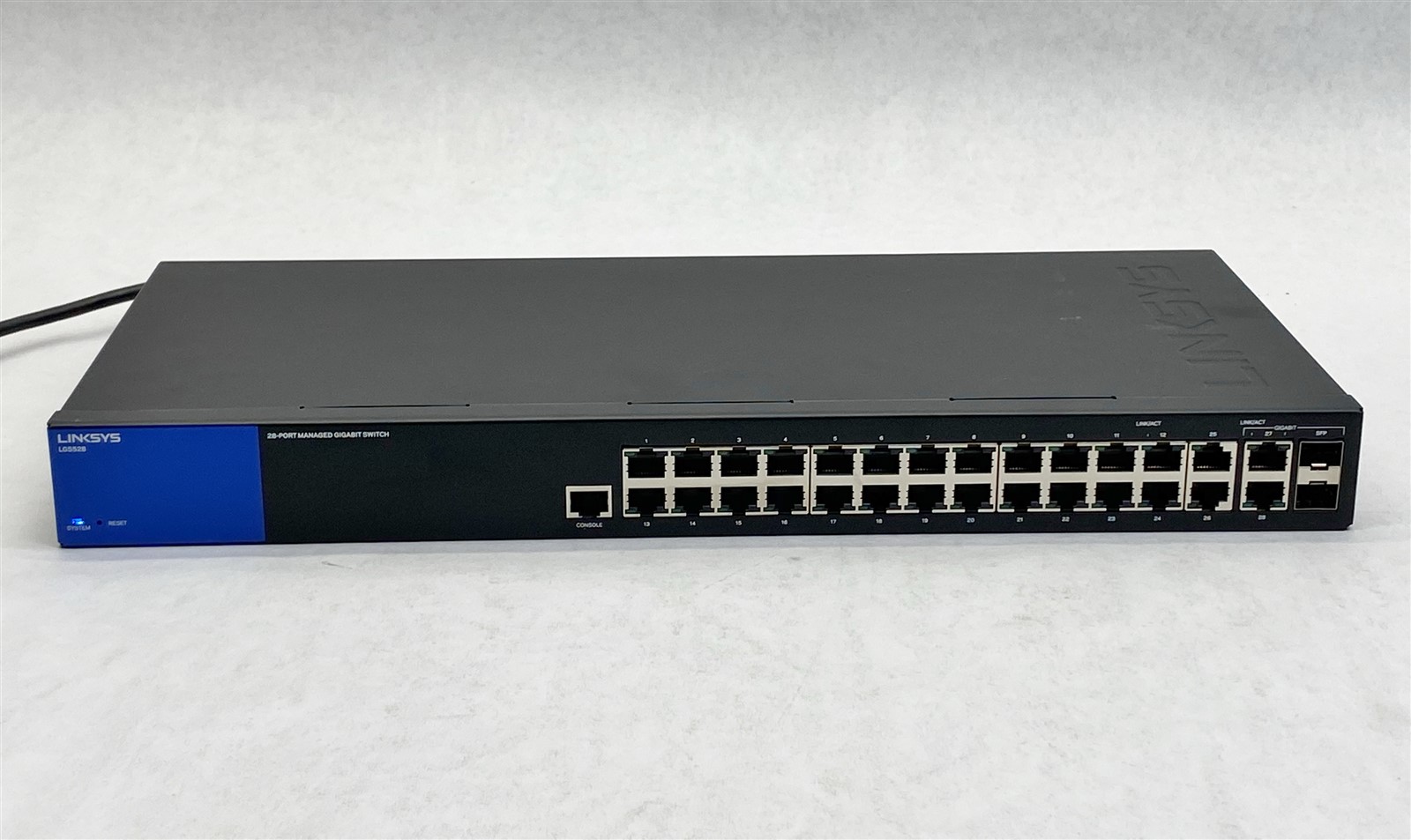

• (1) – LINKSYS LGS528 BUSINESS 28-PORT MANAGED GIGABIT ETHERNET NETWORK SWITCH
• (1) – POWER CABLE
REPLACEMENT or MONEY BACK GUARANTEE:
When you receive a Guaranteed item from OC Depot, it should perform as described. In the rare situation that this is not the case, we will send a replacement upon safe return of the original item within 30 days of receiving the item. If a replacement is not available we will honor the terms of our Money-Back Guarantee.
ADDITIONAL INFORMATION:
The following is the Console Log from this item:
Boot1 Checksum Test………………………….PASS
Boot2 Checksum Test………………………….PASS
Flash Image Validation Test…………………..PASS
BOOT Software Version 1.0.0.6 Built 28-Mar-2014 14:26:43
LINKSYS
Networking device with Marvell ARM CPU core. 128 MByte SDRAM.
I-Cache 16 KB. D-Cache 16 KB. L2 Cache 256 KB. Cache Enabled.
MAC Address : b4:75:0e:7b:9e:9d.
Autoboot in 2 seconds – press RETURN or Esc. to abort and enter prom.
Preparing to decompress…
100%
Decompressing SW from image-1
100%
OK
Running from RAM…
GPIO ID is 6
Hardware Version: V02
Module type is 6
Device ID 0xe40011ab
*********************************************************************
*** Running SW Ver. 1.1.0.27 Date 24-Oct-2014 Time 14:48:26 ***
*********************************************************************
HW version is V02
Base Mac address is: b4:75:0e:7b:9e:9d
Dram size is : 128M bytes
Dram first block size is : 102912K bytes
Dram first PTR is : 0x1780000
Dram second block size is : 4096K bytes
Dram second PTR is : 0x7C00000
Flash size is: 16M
……………………………………………………………………..
……………………………………………………………………..
……………………………………………………………………..
……………………………………………………………………..
……………………………………………………………………..
……………………………………………………………………..
……………………………………………………………………..
……………………………………………………………………..
……………………………………………………………………..
……………………………………………………………………..
……………………………………………………………………..
…………………………………………….24-Oct-2014 14:48:29 %CDB-I-
LOADCONFIG: Loading running configuration.
24-Oct-2014 14:48:29 %CDB-I-LOADCONFIG: Loading startup configuration.
Device configuration:
Slot 1 – LGS528
Device 0: GT_98DX3055 (AlleyCat2)
————————————
— Unit Standalone —
————————————
Tapi Version: v1.9.6
Core Version: v1.9.6
24-Oct-2014 14:48:46 %INIT-I-InitCompleted: Initialization task is completed
Login
—–
User Name: admin
Password: *****
Linksys Switch Menu
——————-
1. System Configuration Menu
2. Port Status Menu
3. System Mode
4. Help
5. Logout
ArrowKey/TAB/BACK=Move SPACE=Toggle ENTER=Select ESC=Back
| Weight | 6.00 lbs |
|---|---|
| Dimensions | 17.00 × 8.00 × 2.00 in |
